SLIDER VR

LIGHTWEIGHT FULL-LENGTH ALUMINIUM SLIDER

Slider VR
Heavy load, high versatility slider fully designed in-house and machined in our CNC workshop. This slider can be tailored to your every length need on set with close to no tool requirement whilst being able to stay quiet and very smooth.

  • Weight: 16 kg / 35 lbs (120 cm / 4′ model).
  • Supports loads up to 500 cm / 16′4″.
  • Standard Mitchell plate carriage mount.
    Alternatives: 100 and 150 mm bowl or Euro-adapter mount
  • Mobile Mitchell mount base allowing a 360° turn linked to a dual locking system to avoid any mechanical backlash.

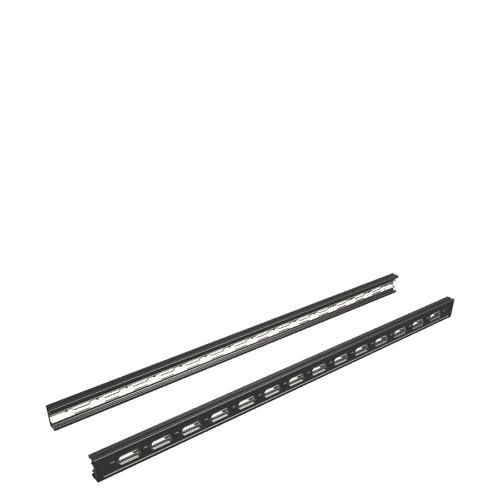

  • Rails: Hepcomotion® stainless steel.
    Customisable with extra interchangeable rails: 9 lengths available from 60 cm / 2′ up to 320 cm / 10′6″.
  • Magnetic stops that allow for full sliding travel.
  • Monopods can be installed on both ends to increase stability for heavy loads (3/8”-16 or 1/4”-20 UNC inserts)
  • Locking lever to easily stop the carriage.
  • Built-in bull’s eye level.
Slider VR Set

3D Viewer

Click on the cube to start the 3D experience,
click on the icon on the left to go fullscreen

VR60 VR80 VR100 VR120 VR160 VR200 VR240 VR280 VR320
60 cm
80 cm
100 cm
120 cm
160 cm
200 cm
240 cm
280 cm
320 cm
2'
2'7"
3'3"
4'
5'3"
6'7"
7'10"
9'2"
10'6"
Other sizes are available on request.
